SAERTEX Fabrics for every requirement
SAERTEX offers a broad portfolio of advanced fiber composites. Our unidirectional and multiaxial fabrics combine high strength with low weight - for components that are reliable and efficient.
We process glass, carbon, aramid and natural fibers in different layer structures, fiber orientations, and area weights. This results in fabrics that can be precisely tailored to the requirements of your application.
The SAERTEX portfolio: textile reinforcements at a glance
Discover our reinforcement materials made from glass, carbon, aramid and natural fibers - modularly combinable, available worldwide:
| Fabrics | Core material | |||
|---|---|---|---|---|
| Product range | UD/Bidirectional | Multiaxial | SAERcore | SAERfoam |
| Material type | Textile reinforcement (dry) | Textile reinforcement (dry) | Textile reinforcement (dry) | Engineered core (dry) |
| Raw material input | Glass (E, H, S), carbon (12-50k), aramid, flax, basalt | Glass (E)+PP/RC | PU foam + glass (E) | |
| Fiber processing | Straight fibers | Straight fibers | CSM* | 3D bridges |
| Structure | Unidirectional/bidirectional | Multiaxial | CSM/PP/CSM | – |
| Fiber orientation | 0° / 90° | -22.5° to +22.5° | diverse | – |
| Number of layers | 1 (UD) or 2 (BD) | 2-5 | 3 | – |
| Product refinement | ||||
| Self-adhesive - with SAERfix | Yes | Yes | Yes | Yes |
| Powder binding preforming | Yes | Yes | No | No |
| Integrated flow aid - SAERflow | Yes | Yes | No** | No |
| Cutting & Kitting | Yes | Yes | Yes | Yes |
| Toughening | Yes | Yes | Yes | No |
| Special articles | Easy Drape, Magic Flow, Steady Plus, Ultra Fatigue | Carbon Class A Biax | + NCF (SAERcore Max) | Drapable |
| Recommended for the following procedures | ||||
| Vacuum infusion | +++ | +++ | ++ | +++ |
| HP-RTM | +++ | +++ | + | – |
| RTM light | ++ | ++ | +++ | +++ |
| Compression | ++ | ++ | +++ | ++ |
| Hand lay-up | + | + | – | – |
| Pultrusion | +++ | ++ | – | – |
| Prepreg/Continuous | +++ | ++ | – | + |
* Chopped Strand Mat ** PP core as standard as flow medium, alternatively recycled core material (RC) available
Our UD variants with specific properties
Carbon Mini Tapes
Highest precision for applications with tight tolerances. Ideal for automated manufacturing processes such as fiber placement.
Easy Drape UD
Unidirectional glass fiber fabric with virtually wave-free draping. Specially developed for rotor blades.
Magic Flow UD
Unidirectional carbon fiber fabric with maximum resin flow velocity – for component thicknesses up to 140 mm.
Steady Plus UD
Flow-optimized carbon UD with excellent drapability. Suitable for complex component geometries – also ideal for use as tape.
Still looking for the right material for your composite component?
Here you will find an overview of our fabric variants – from standard solutions to customized product developments.
Complete SAERTEX reinforcement for hybrid passenger catamaran – The GATTO shipyard is relying on 100% for its latest passenger boat...
High-performance skis with SAERTEX hybrid fabrics – Fischer Sports is the global market leader in Nordic skiing and a...

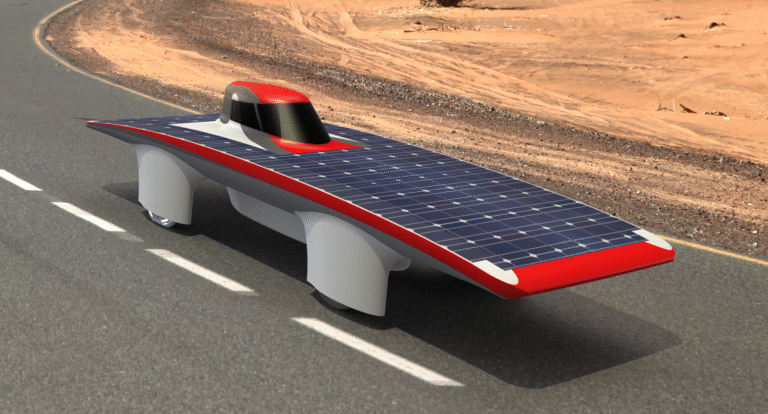

Since 1992, scientists and students at the École de technologie supérieure (ETS) have been researching and developing...
SAERfoam and glass NCFs in the Otter Valley Estuary Footbridge – The Otter Valley Estuary...
Lightweight platforms with plug-and-play composite solutions – Développement Composite is a newly founded company led by a...

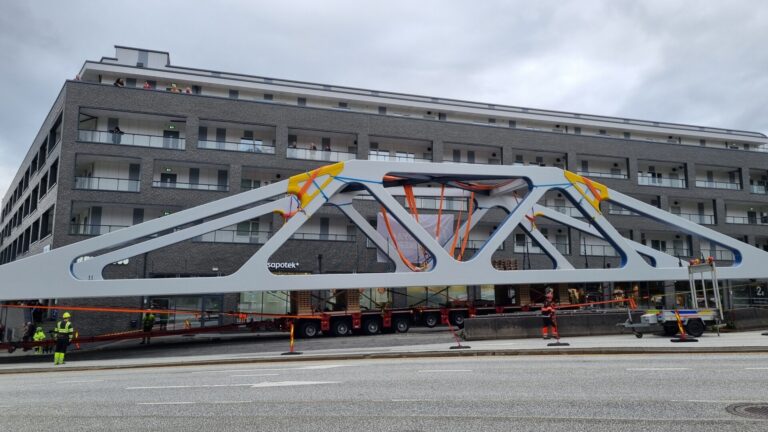

The longest composite truss bridge in the world – the Paradis Bridge in a small suburb of Bergen...

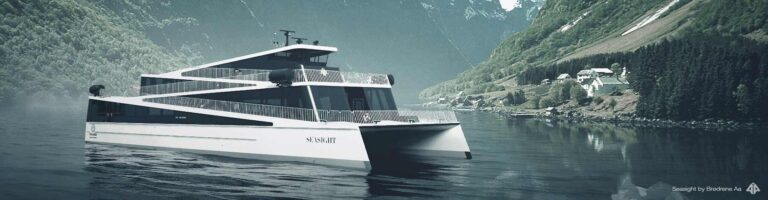

Brødrene Aa: Carbon-NCF for emission-free fjord catamarans – Three modern sightseeing vessels, one common goal: Together with...

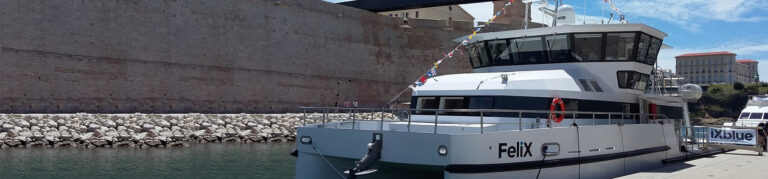

Founded in Marseille in 1991, the H2X shipyard carries out conversions and new builds of motor and...

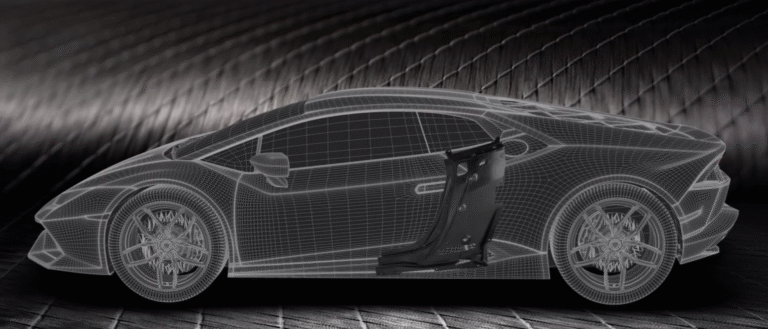

Audi & SAERTEX®: Carbon NCF for the B-pillar of the Lamborghini Huracán – Lightweight construction in super sports cars: For the...

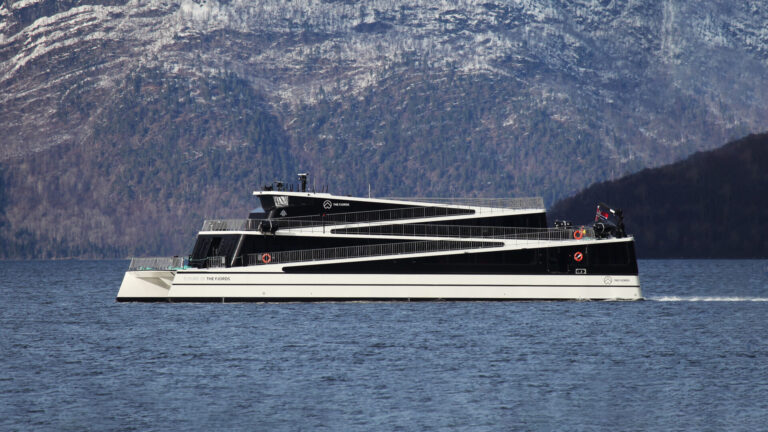

Since the 1970s, the boat builders at the company in Hyen, on the west coast of Norway, have been...
Frequently asked questions
Precise. Flexible. On time. When it comes to multiaxial fabrics, it's not just the quality of the reinforcement material that counts, but also reliable delivery - precisely tailored to your production. In the following FAQ, we answer all your questions about ordering processes, delivery times, transport conditions and special logistics requirements for multiaxial fabrics.
How can I order products from SAERTEX?
Via our sales staff or by request on our website.
Are there minimum order quantities?
Yes, these vary depending on the product. Please contact us for details.
How long are the delivery times?
Depending on material, production costs and location. Our standard products such as the Basicline are generally available at short notice.
Are technical data sheets and certificates available?
Yes, you can download all relevant documents here.
Focus on multiaxial and unidirectional fabrics
Get to know our fabrics even better - with additional details, technical background information and more.
